CNC Vertical Machining Center Akira Seiki HV-8A
Offer No.  INNO28946
Description

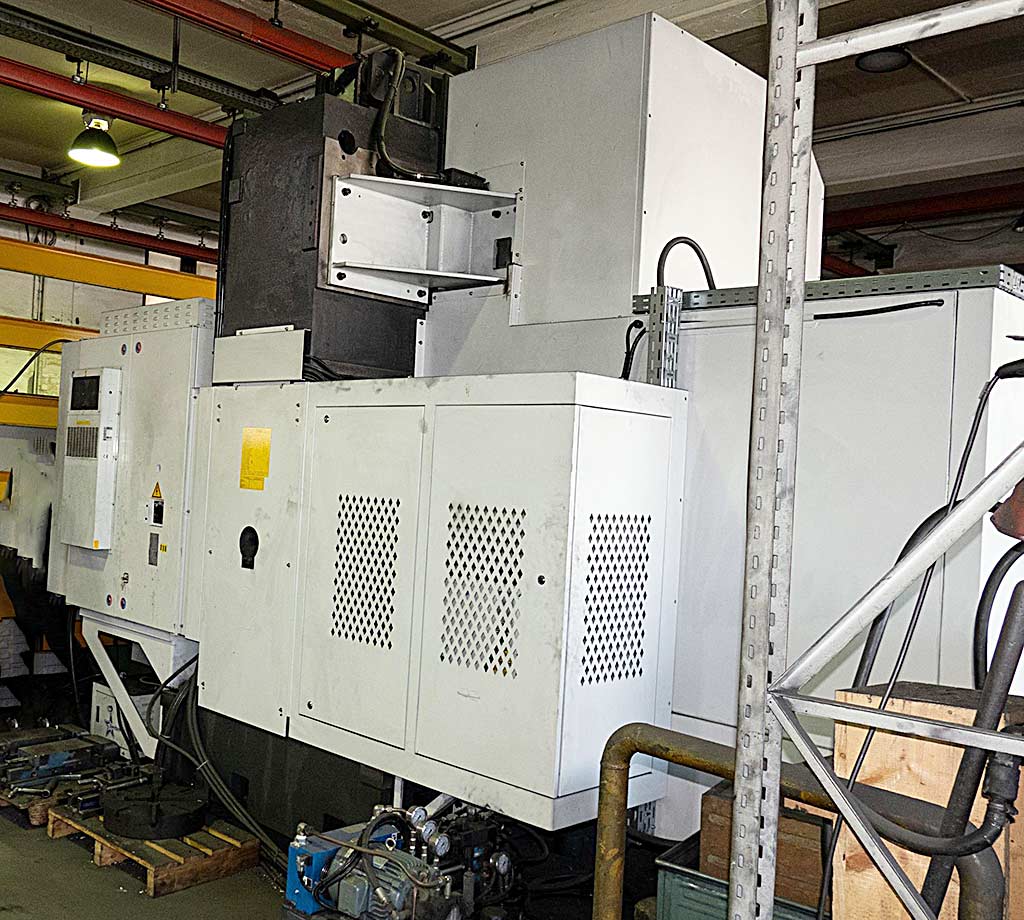

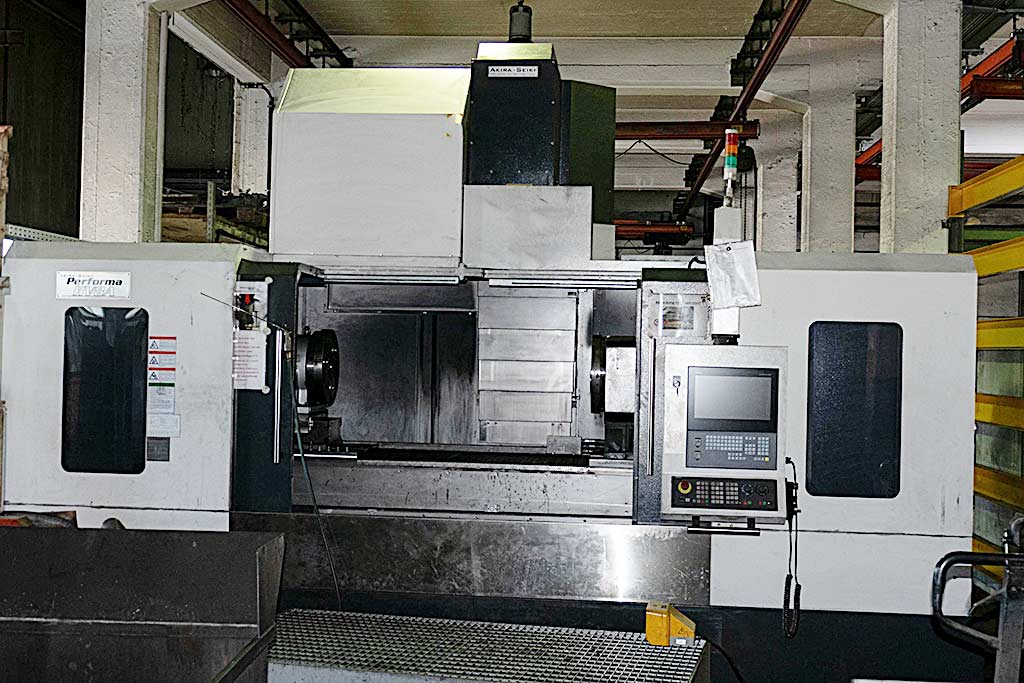

A CNC vertical machining center Akira Performa with a counter bearing on the A-axis is available. Travel X/Y/Z: 2060mm/850mm/815mm, spindle-table distance: 120mm-935mm, table dimensions X/Y: 2150mm/800mm, max. table load: 3240kg. Spindle power: 42kW, speed: 8000rpm, tool holder: BT50, rapid traverse X/Y/Z: 36m/36m/30m/min, positioning accuracy: 0.015mm, repetition accuracy: +/-0.005mm. Tool positions: 28, max. tool diameter: 100mm/200mm, max. tool length: 350mm, max. tool weight: 15kg. Machine dimensions X/Y: approx. 5000mm/3550mm, weight: approx. 14500kg, control: Siemens 828, documentation available. On-site inspection is possible.
Make Akira Seiki
Model HV-8A
Year of manufacture 2022
Price On application
Offer No INNO28946
