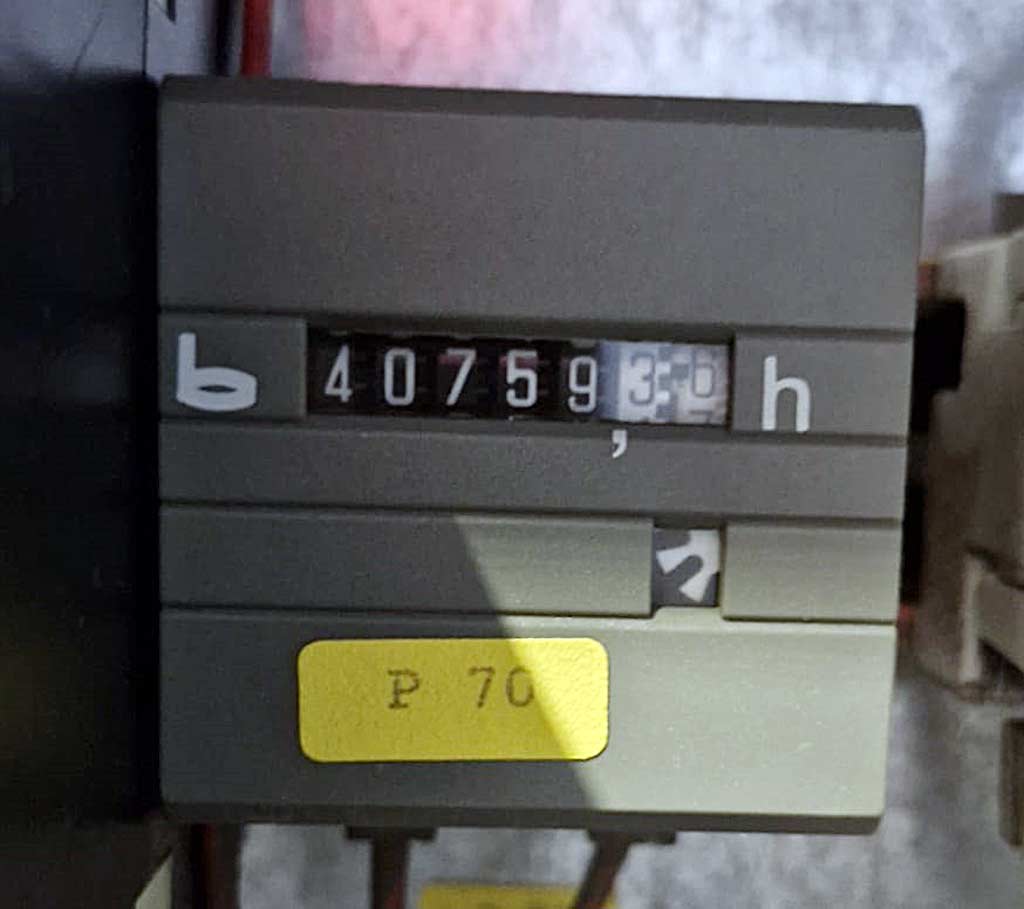

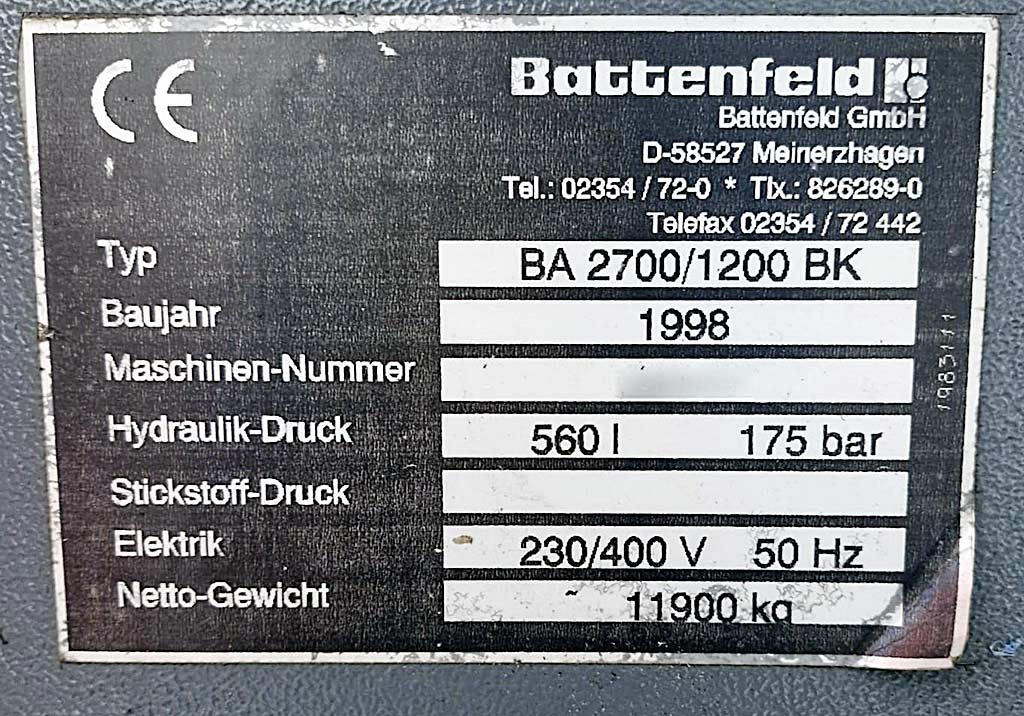

| Description Two injection molding machines are available. 1) Battenfeld BA 2700/1200 BK, year of manufacture: 1998, clamping force: 2700kN, platen dimensions X/Y: 900mm/1020mm, tie bar distance X/Y: 630mm/630mm, opening stroke: 550mm, mold height min./max.: 250mm/620mm, max. platen distance: 1170mm, ejector stroke: 160mm. Screw diameter: 55mm, L/D ratio: 22, injection pressure: 1305bar, stroke volume: 913cm³, injection weight: 830g. Machine dimensions X/Y/Z: approx. 6800mm/1900mm/3400mm, weight: approx. 12000kg, control: Unilog 4000, operating hours: approx. 40759h. The machine exhibits faults when switching over. 2) Engel ES 200/45 HLS, year of construction: 1998, clamping force: 45t, platen dimensions X/Y: 550mm/430mm, min. installation height: 180mm, platen distance: 530mm, opening stroke: 350mm, ejector stroke: 100mm. Screw diameter: 25mm, stroke volume: 99cm³, injection pressure: 1400bar, L/D ratio: 20, screw stroke: 140mm. Machine dimensions X/Y/Z: approx. 3300mm/1200mm/1800mm, weight: approx. 3300kg, operating hours: 74165h. The machine has slight leaks in the hydraulics. Documentation available. On-site inspection is possible. Individual sale possible. |
|
| Make | Battenfeld/engel |
|---|---|
| Model | BA 2700-1200 BK/ES 200-45 HLS |
| Year of manufacture | 1998 |
| Price | On application |
| Offer No | INNO28881 |
