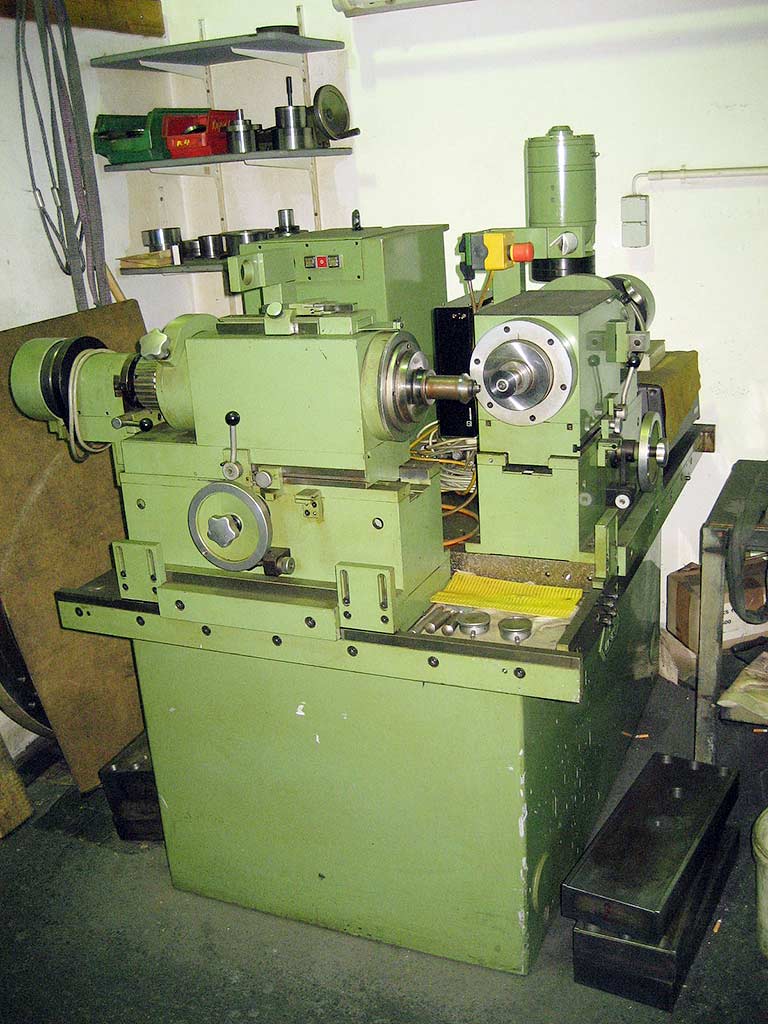

| Description A Klingelnberg single flank gear testing machine for cylindrical and bevel gears is available. Center distance for cylindrical gears: 900mm, test wheel weight: 1000kg, bevel gear diameter: 425mm, bevel pinion mounting dimension: 800mm, bevel gear outer mounting dimension: 440mm, mounting bore diameter: 90mm, mounting bore depth: 400mm, max. radial load: 50kg, angle adjustment: 45°-135°. Machine dimensions X/Y/Z: approx. 1600mm/2400mm/1600mm, weight: approx. 1600kg. One electrical component of the circuit board is defective. Documentation available. On-site inspection is possible. |
|
| Make | Klingelnberg |
|---|---|
| Model | PSKE 900 |
| Year of manufacture | 1977 |
| Price | On application |
| Offer No | INNO28393 |
