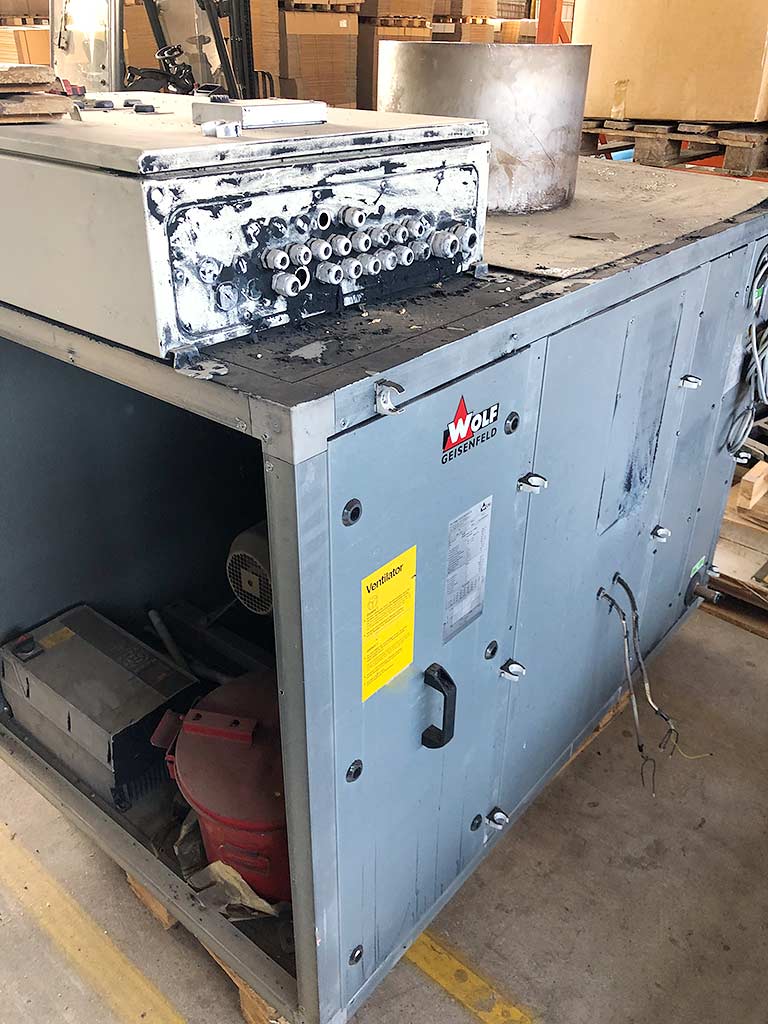

| Description A Wolf air conditioning and ventilation system, consisting of a supply air unit, an extract air unit and a heater, is available. 1) Wolf WK-101 supply air unit, nominal volume flow: 8500m³/h or 2.36m³/s, total/exact delivery pressure: 675Pa/250Pa, fan efficiency: 75.3%, fan speed: 2131rpm, fan power: 2.4kW, differential pressure: 1861Pa, motor power: 3kW, motor speed: 1420rpm. 2) Wolf WK-101 exhaust air unit, nominal volume flow: 8500m³/h or 2.36m³/s, number of filters: 4, filter class: F5, filter type: Biost. Pocket filter TK F5 PVC, initial pressure difference: 69Pa, final pressure difference: 200Pa. 3) Wolf WK-101 heater, nominal volume flow: 8500m³/h or 2.36m³/s, nominal heat output: 51.4kW, air inlet and air outlet temperature: -14°C/4°C, heating medium: water-glycol, flow temperature: 12.8°C, return temperature: 0.7°C, medium flow rate: 4240l/h, glycol content: 30%, max. operating temperature: 120°C, pressure difference air/water: 0Pa/29.5Pa. On-site inspection is possible. |
|
| Make | Wolf |
|---|---|
| Model | WK-101 |
| Year of manufacture | 2008 |
| Price | On application |
| Offer No | INNO27871 |
