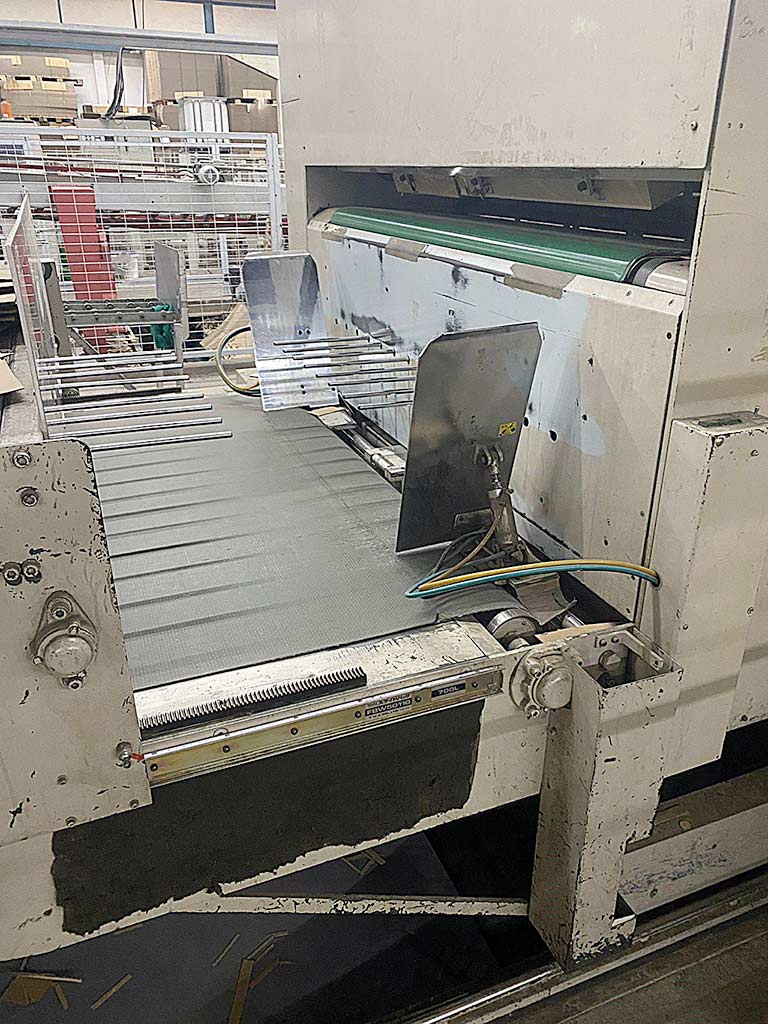

Flat Bed Die Cutter Marumatsu SAPV-1612
Offer No.  INNO27367
Description
Material thickness range: 1mm-8mm, min. sheet dimensions X/Y: 600mm/400mm, max. sheet dimensions X/Y/Z: 1600mm/1200mm, max. die-cut: 1580mm/1180mm, max. die-cut plate dimensions X/Y: 1740mm/1230mm, min. die-cut plate dimensions X/Y: 620mm/530mm, max. die-cut pressure: approx. 300t. Die-cutting plate dimensions X/Y: 1740mm/1230mm, min. die-cutting plate dimensions X/Y: 620mm/530mm, max. die-cutting pressure: approx. 300t, stroke: 70mm, max. die-cutting speed: 50 sheets/min, weight: approx. 34000kg. Coupling, see-through panel and smaller capping parts were installed in 2024. Documentation available. On-site inspection is possible.
Make Marumatsu
Model SAPV-1612
Year of manufacture 1993
Price On application
Offer No INNO27367
