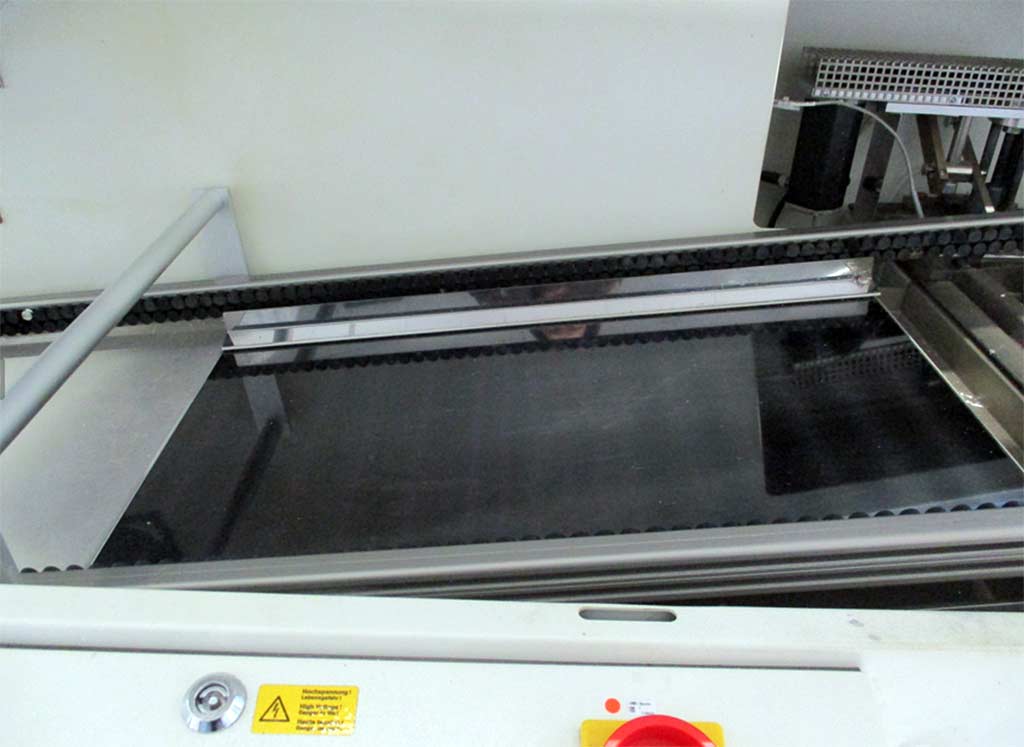

Description max. soldering width/passage height/board length: 340mm/100mm/500mm. max. wave height: 7mm, solder volume SnPb/SnAgCu: approx. 185kg/150kg, heating time from 20°C to 250°C: approx. 90 min. Preheating zones: 1, preheating power: 3kW, max. preheating temperature: 420°C. Soldering frame transport width: 417mm, transport angle manually adjustable: 6-8°, transport speed min.-max.: 0.3-2.0 m/min. Including 2 soldering frames: Profile: 18mm, lug L: 381mm. On-site inspection is possible. |
|
Make | Seho |
---|---|
Model | GoWave |
Year of manufacture | 2019 |
Price | On application |
Offer No | INNO26618 |
